Bosch GMS 120 Professional Detector

Bosch PRO GMS 120-27 Detector

€189.00 (Inc. VAT)

€153.66 (Ex. VAT)

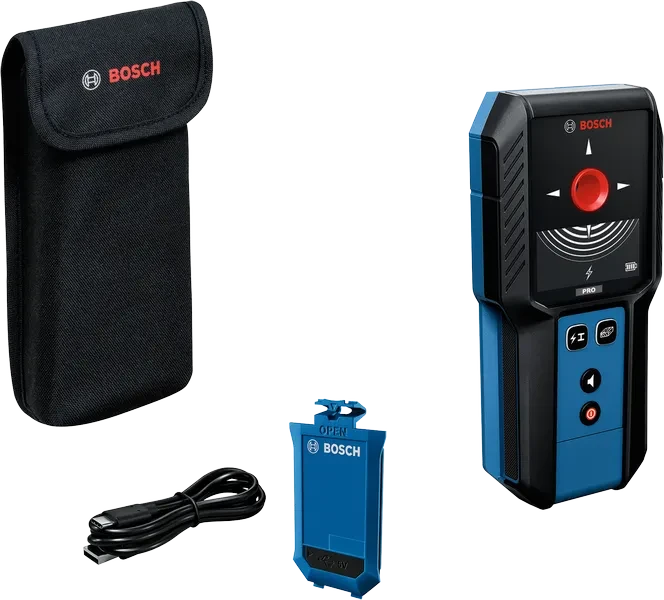

Bosch GMS 120-27 Professional Detector

The Bosch GMS 120-27 Professional is an intuitive wall scanner designed to give users confidence before drilling into drywall. It pinpoints the center and material characteristics of hidden obstructions, featuring simple mode selection and direct marking through the device.

Technical Specifications

Feature	Specification

Max. Detection Depth (Non-Magnetic Metal)	Up to 120 mm
Max. Detection Depth (Magnetic Metal)	Up to 100 mm
Max. Detection Depth (Live Cables)	Up to 50 mm
Max. Detection Depth (Wooden Substructures)	Up to 30 mm
Detectable Objects	Magnetic metals (iron), non-magnetic metals (copper), wooden studs, live cables
Material Identification	Live object, magnetic metal, non-magnetic metal, non-metal material
Power Supply	2 x 1.5 V LR6 (AA), 2 x 1.2 V HR6 (AA), or 1 x BA 3.7 V 1.0 Ah Li-Ion battery
Dust & Water Protection	IP54
Bosch Radar Technology	No
Weight	Approx. 0.29 kg
Packaging Dimensions (W x L x H)	113 x 208 x 78 mm

Highlights & Key Features

Intuitive Center & Material Detection: Accurately identifies object centers while differentiating between live wires, magnetic metals, non-magnetic metals, and non-metal materials.

Colour-Coded Marking Hole: Provides signal indications via display and an integrated center hole so you can mark precise drilling spots directly onto the wall surface.

Jobsite Durability: Equipped with a shock-absorbing rubber casing and an IP54 rating to withstand dust, splash water, and rugged job site conditions.

Flexible Dual-Power Options: Powered by standard AA batteries or an optional rechargeable 3.7V Li-Ion battery pack via USB-C.

Applications

Designed for craftspeople, plumbers, electricians, and drywall installers doing renovation work. Ideal for safe drilling when installing:

Cabinets, kitchen counters, and washbasins

Boilers and heating systems

Air conditioning and sprinkler systems
