Bosch GIM 60 Professional Incline Measurer
€189.95
(Inc. VAT)
€154.43
(Ex. VAT)

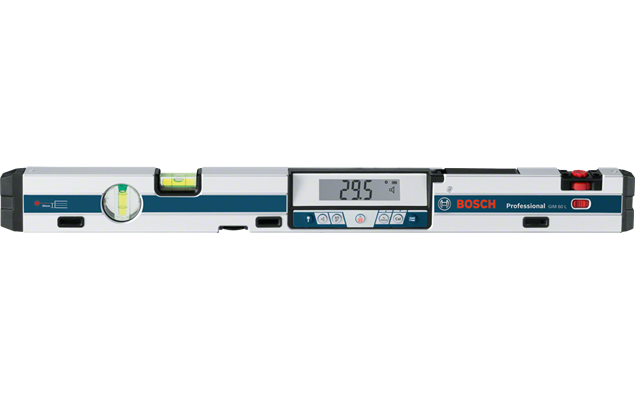

Bosch GIM 60 L Professional Incline Measurer
€295.00
(Inc. VAT)
€239.84
(Ex. VAT)
Description
- Laser-accurate incline transfer over longer distances
User benefit

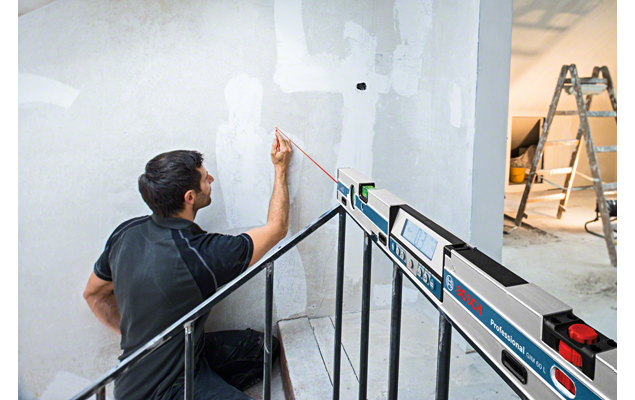

- Integrated point laser for incline measurement up to a distance of 30 m
- Strong magnets and two straps for securely fastening the instrument to workpieces
- Incline mechanism for fine adjustment on uneven surfaces
Other features
- Any value can be set as alternative 0°
- Angles can be adjusted manually to enable easy transfer
- Audio signal guides the user to the desired angle without having to look at the display
- Units of measure can be switched
- Automatically rotating display for better readability
Technical data
| Length | 60 cm |
| Measurement range | 0 – 360° (4 x 90°) |
| Electronics measurement accuracy 0°/90° | ± 0.05° |
| Electronics measuring accuracy at 1– 89° | ± 0.1° |
| Working range (laser) | 30 m |
| Weight, approx. | 0.91 kg |
| Laser type | 635 nm, < 1 mW |
| Laser range | 30 m |
| Laser class | 2 |
| Levelling accuracy of laser | ± 0,5 mm/m |
| Units of measurement | °, %, mm/m |
| Tripod thread | 1/4" |
-
-
