Bosch GCM 305-254 D PROFESSIONAL MITRE SAW 230v

Bosch GCM 305-254 D Professional Mitre Saw 230v (254mm)

UPC:
4059952613222
€839.00 (Inc. VAT)
€682.11 (Ex. VAT)
Current Stock:
Description

GCM 305-254 D PROFESSIONAL: FURTHER INFORMATION

Product Highlights

With its powerful motor, the GCM 305-254 D Professional offers enough cutting performance even for ambitious cuts. The mobile miter saw uses detachable workpiece supports and long table extensions to make cutting long materials easy and simple. Higher comfort and flexibility in demanding cuts are ensured by its dual bevel settings with ergonomic bevel lock wheel.

Equipment & Application

Cross cuts, miter cuts, and bevel cuts in wood, aluminium, and PVC plastic can be done perfectly with the GCM 305‐254 D Professional. The mitre saw is compatible with all Bosch dust extractors, GTA saw stands, and saw blades for corded miter saws.

Additional Information

The mobile miter saw comes up with higher precision due to the dual laser lines display to the left and right of the saw blade. It is light and compact and the various one- or two-handed carrying options make transport easy.

Cuts up to 90 x 305 mm: the mobile, lightweight, and ergonomic miter saw

  • Strong cutting performance for toughest cuts
  • Easy controlling of long materials during cutting by detachable workpiece supports and long table extensions
  • Dual bevel function for convenient cutting

Functions & key features

Precision Dual Laser; precise and intuitive thanks to laser projection of cutting line left and right of the saw blade Illuminating of the work areaClick & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster Harmful dust is extracted immediately: Protects your health Less dust: Longer lifetime of tool and accessories
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor Soft start as the load and torque of the motor are temporarily reduced during start-up.


TECHNICAL DATA

The most important data
Cutting capacity, 0° 90 x 305 mm
Cutting capacity, 45° mitre 90 x 215 mm
Cutting capacity, 45° bevel 55 x 305 mm
Mitre setting 48 ° L / 48 ° R
Bevel setting 47 ° L / 47 ° R

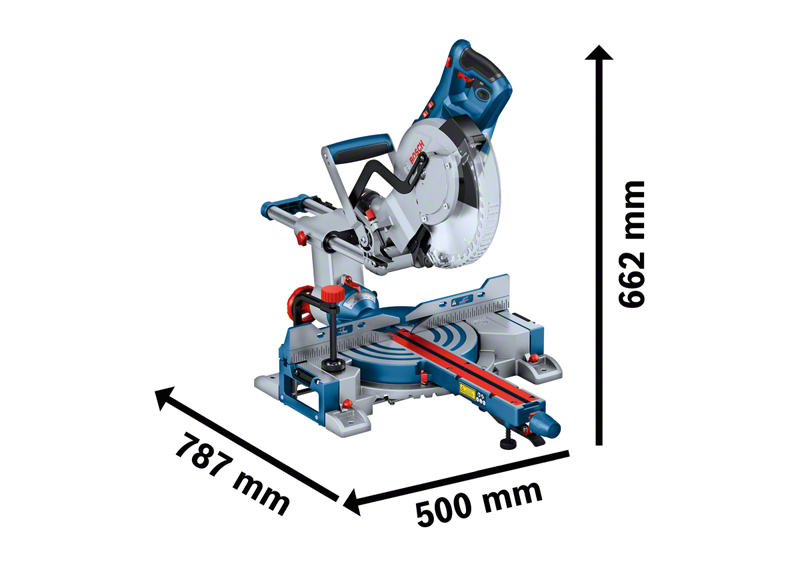

Tool dimensions (width x length x height) 500 x787 x662 mm
No-load speed* 4,500 rpm
Saw blade diameter 254 mm
Saw blade bore diameter 30 mm
Weight* 19.8 kg
Rated input power 1,500 W
Packaging dimensions (width x length x height) 575 x 845 x 365 mm

Noise/vibration information
Sound pressure level 88 dB(A)
Sound power level 101 dB(A)
Uncertainty K 3 dB

The A-rated noise level of the power tool is typically as follows: Sound pressure level 88 dB(A); Sound power level 101 dB(A). Uncertainty K= 3 dB.
