Overview
The GCM 18V-305 GDC Professional BITURBO cordless mitre saw offers powerful cutting depth with cuts up to 120 mm. Fully optimised for the ProCORE18V technology, the mitre saw’s brushless motor delivers cordless power equal to 2000 W corded mitre saw. This saw offers a User Interface as well as connectivity for quick battery status check and speed selection including ECO mode. Features like tool-less saw blade change, upfront bevel control, and motor brake enhance the safety of the saw.

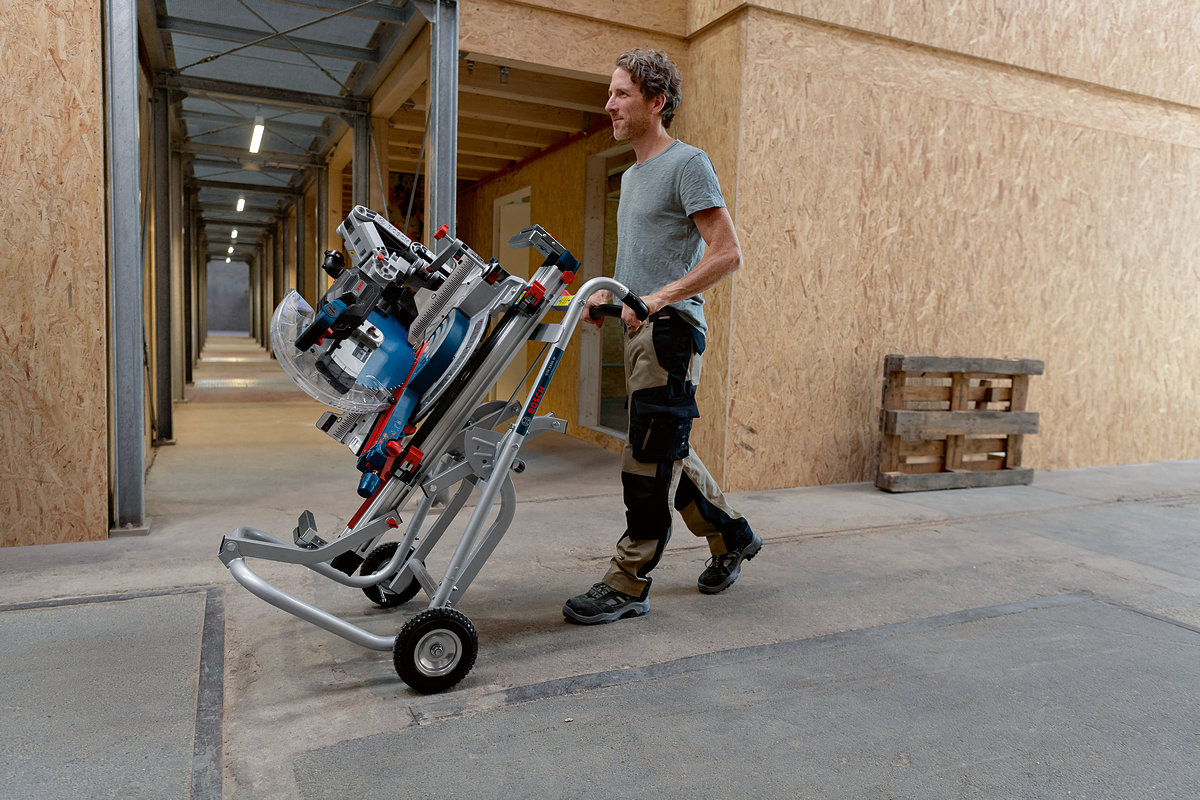

The tool is ideal for compound cutting as well as a broad range of materials. The saw can be mounted on multiple Bosch GTA stands. This mitre saw is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System), for maximum power use ProCORE18V ≥ 5.5 Ah.
The GCM 18V-305 GDC Professional delivers full power with just one battery, also in tough applications. Speed selection and Bosch´s wide saw blade range make this mitre saw perfectly suitable for working with almost any material.
Specifications
Cutting capacity, 0° |
104 x 341 mm |
Cutting capacity 0° with spacer (max. vertical) |
120 x 200 mm |
Cutting capacity 0° with spacer (max. horizontal) |
45 x 400 mm |
Cutting capacity, 45° mitre |
104 x 240 mm |
Cutting capacity, 45° bevel |
40 x 341 mm |
Mitre setting |
52 ° L / 60 ° R |
Bevel setting |
47 ° L / 47 ° R |
Tool dimensions (width x length x height) |
630 x 565 x 790 mm |
No-load speed* |
2,550 – 4,000 rpm |
Saw blade diameter |
305 mm |
Saw blade bore diameter |
30 mm |
Weight* |
26.9 kg |
Battery voltage |
18.0 V |
Packaging dimensions (width x length x height) |
585 x 783 x 572 mm |
Inclusive
- 1 x cordless saw blade, Expert for Wood, 305 x 2.2 /1.6 x 30 mm, 60
- Internal hexagon (1609B00256)
- Insert plate (1609B02375)
- 1 x Bluetooth Low Energy module GCY 42 Professional (1600A016NH)
- Cardboard box
- Dustbag (1609B05010)
- SDS saw blade lock (1609B05323)
- Clamp (1609B06203)
