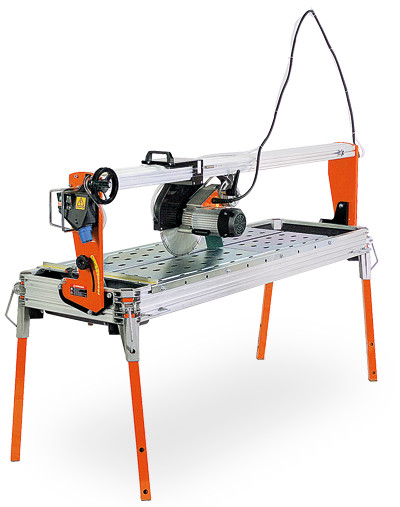

Battipav Supreme 150 Marble Bridge Saw
Battipav
€2,699.00
(Inc. VAT)
€2,194.31
(Ex. VAT)
Overview
Supreme is a bridge saw ideal for cutting natural stones, granite and marble slabs.
It makes cuts moving forward manually the engine group.
It is built to work with diamond disk Ø300 mm.
Features
- Single phase engine 230V 50Hz 3Hp/2,2Kw with thermal and amperometrical protection
- Switch with release coil
- Overheat protection with manual reset
- Sliding cutting head and tilting engine
- Cutting progress system with hand wheel
- Adjustable legs
- Adjustable goniometer fence
- Water recycling pump type S3
- Disk Ø 300 not included
Specifications
| MAX CUTTING LENGHT |
1500 mm |
|---|---|
| SIZE TILE FOR DIAGONAL CUTTING |
1060×1060 mm |
| MAX CUTTING THICKNESS |
85 mm |
| MAX CUTTING DEPTH FOR 45° (JOLLY) CUT |
60 mm |
| DIAMOND BLADE DIAMETER |
300 mm |
| TOOL HOLE |
25,4 mm |
| POWER ENGINE |
3Hp/2,2Kw, 9A |
| MACHINE'S DIMENSION IN STOCK |
72x225x100 cm |
| ROTATION SPEED |
2800rpm |
| WATER TANK CAPACITY |
Min.31/ Max. 49 liters |
| MAX CUTTING DEPTH WITH 2 RUNS |
135 mm |
| ENGINE TYPE |
SINGLE-PHASE 230V~50Hz |
| LASER INSTRUMENT |
Optional |
| WATER PUMP |
S3 |
| MACHINE'S DIMENSION |
2280x900x H1280 mm |
| WEIGHT |
96 kg |
| AMPEROMETRIC PROTECTION |
13 A |
| FENCE |
Standard |
| EXTENSION SIDE BENCH |
Optional |
| SIDE BENCH DIMESION |
1485×625 mm |
| WHEELS |
Optional |
| THERMIC PROTECTION |
160°C |
