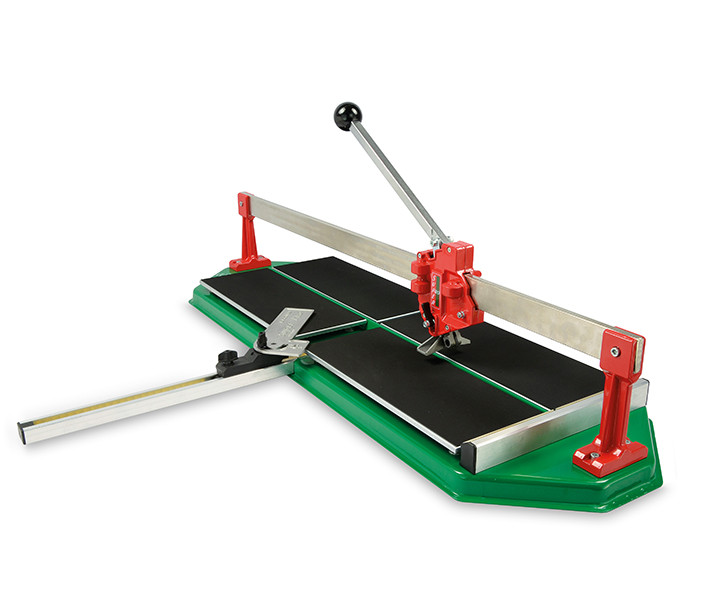

Battipav Super Pro 750 Tile Cutter

Battipav
€389.00 (Inc. VAT)
€316.26 (Ex. VAT)
Current Stock:

Super Professional tile cutter for diagonal and straight cuts on single-double fired ceramic and gres.
The carriage is equipped with nine ball-bearings, four of which are adjustable, to assure a perfect sliding and top precision.
Diagonal fence included.

Carriage with nine ball-bearings.
Diagonal fence included.
– Cutting length up to 750 mm
– Size tile for diagonal cutting: 52 x 52 cm



CHARACTERISTICS

Cutting to push and working table with springs to make the tiles’ break easier. Graduated tile supporting bar for quick straight cuts.
Very strong sheet body. Diagonal fence with direct reading of the measurement on its supporting rod.
Suitable also for left-handed operators !

CUTTING WHEEL

Max. cutting thickness from 5 to 19 mm. and big size cutting wheel Ø 22 mm.

FENCE FOR DIAGONAL CUTS

Direct reading of the measurement for diagonal cuts.

TILE CUTTING IN EVERY POINT

Tile cutting possible in every point.

MAX CUTTING THICKNESS:
From 5 to 19 mm
MAX CUTTING LENGHT:
750 mm
SIZE TILE FOR DIAGONAL CUTTING:
530×530 mm
MACHINE'S DIMENSION IN STOCK:
101x34x16 cm
CUTTING TYPE:
TO PUSH cut
MACHINE'S DIMENSION:
1005x710xH280mm
SPARE WHEEL:
Optional
WEIGHT:
16 kg
SCROLLBAR SECTION:
10x40mm
CUTTING TOOL DIMENSION:
Ø22×6,1×4,7 mm
FENCE:
Standard
SIDE BENCH DIMESION:
750x300mm
