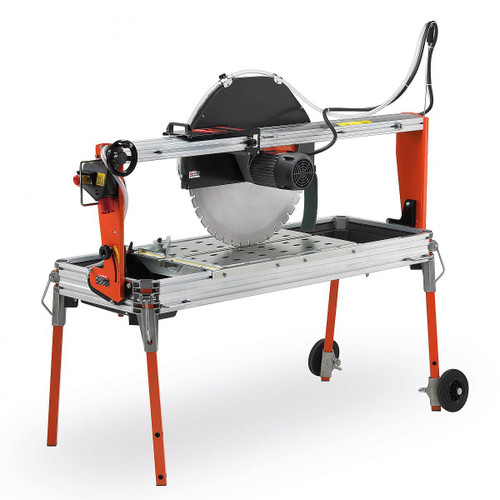

Battipav Prime 650 Bridge Saw with Wheels (3 Phase)
BattipavOverview
PRIME 650 is a bridge saw ideal for the building sector.
New design with vanguard technical innovation, strong and precise, it is suitable for cutting brick blocks, natural stones, poroton, concrete blocks.
It makes cuts moving forward manually the engine group. It is built to work with diamond disks Ø650.
Laser instrument can be supplied standard or as optional.
Features
– Three phases engine 400V 50Hz 5,5Hp/4Kw with thermal and amperometrical protection
– Switch with release coil
– Overheat protection with manual reset
– Sliding cutting head
– Cutting progress system with hand wheel
– Laser instrument
– Kit wheels
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S3
Water cooled
Disk Ø650 mm not included
Specifications
| MAX CUTTING LENGHT |
640 mm |
|---|---|
| SIZE TILE FOR DIAGONAL CUTTING |
450×450 mm |
| MAX CUTTING THICKNESS |
250 mm |
| MAX CUTTING DEPTH FOR 45° (JOLLY) CUT |
163 mm |
| DIAMOND BLADE DIAMETER |
Ø650 mm |
| TOOL HOLE |
Ø25,4 mm |
| POWER ENGINE |
5,5Hp/4Kw, 8A |
| ROTATION SPEED |
1400/1700rpm |
| WATER TANK CAPACITY |
Min.23 / Max.36 liters |
| ENGINE TYPE |
THREE-PHASE 400V~50/60Hz |
| LASER INSTRUMENT |
Standard |
| WATER PUMP |
S3 |
| MACHINE'S DIMENSION |
2010x900xH1565mm |
| WEIGHT |
115 kg |
| AMPEROMETRIC PROTECTION |
10-16 A |
| EXTRA CUT |
Up to 820 mm |
| FENCE |
Standard |
| EXTENSION SIDE BENCH |
Optional |
| SIDE BENCH DIMESION |
855×625 mm |
| WHEELS |
Standard |
| THERMIC PROTECTION |
160°c |
