Battipav Prime 150 Tile Machine 110v

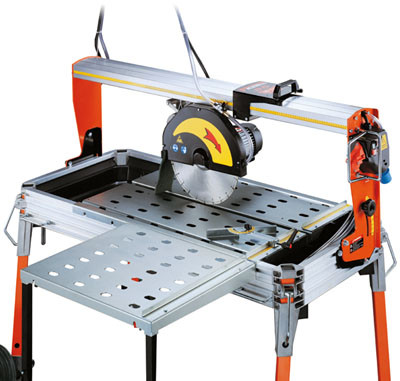

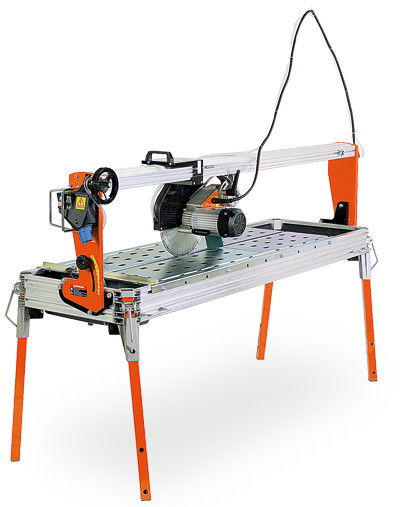

PRIME is a bridge saw ideal for the building sector. New design with vanguard technical innovation, strong and precise, it is suitable for cutting bricks, stones, concrete blocks, granite, marble, slabs.
It makes cuts moving forward manually the engine group.
It is built to work with diamond disk Ø350 mm.
Laser instrument and kit wheels are supplied as optionals.

Bridge saw ideal for the building sector suitable for straight and 45° angle cuts of bricks, stones, granite, marble and slabs.
Equipped with:

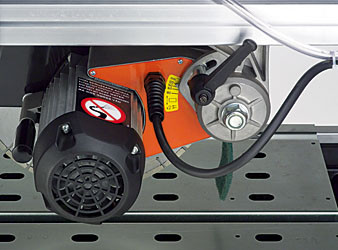

- Single phase engine 230V 50Hz 3Hp/2,2 Kw with thermal and amperometrical protection

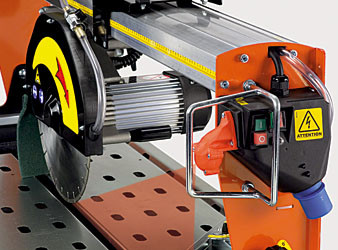

- Switch with release coil
- Overheat protection with manual reset

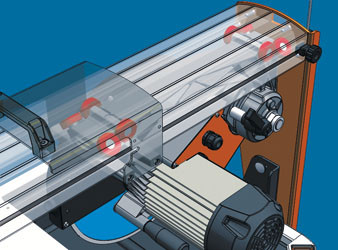

- Sliding cutting head and tilting engine
- Cutting progress system with hand wheel
- Adjustable legs

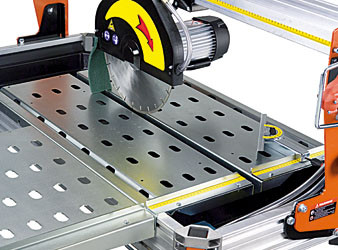

- Adjustable goniometer fence
- Water recycling pump type S3
Max cutting length: 150 cm
Max cutting depth at 90°: 11 cm
Max cutting depth with 2 RUNS: 18 cm
Max cutting depth at 45°: 8 cm
Water tank capacity (min/max): 25/38 liters
Water cooled
Disk Ø 350 mm not included
