Battipav E..Go 80 Masonry Saw
€1,499.00
(Inc. VAT)
€1,218.70
(Ex. VAT)
Overview

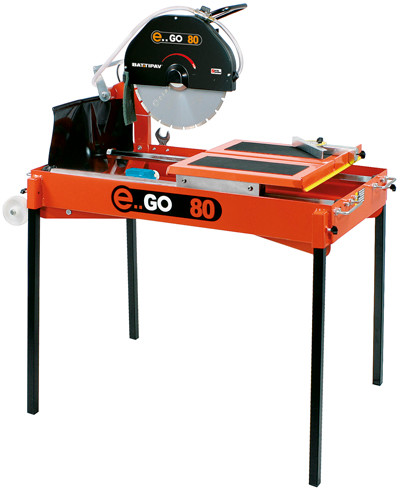

E..GO 80 is a masonry saw ideal for the building sector.
It makes cuts pushing the sliding working table or tilting the cutting head. It’s planned to work with disks Ø 350 or Ø 300 mm for straight and 45° angle cuts of bricks, stones, concrete-blocks and porcelain gres.
Features
- Single phase engine 230V 50Hz 3Hp/2,2 Kw with thermal and amperometrical protection
- Switch with release coil
- Overheat protection with manual reset
- Sliding working table and tilting cutting head
- Wheels
- Adjustable goniometer fence
- Water recycling pump type S0
- Water cooled
- Diamond blade not included
- Three phase engine available upon request
Specifications
| MAX CUTTING LENGHT |
800 mm |
|---|---|
| SIZE TILE FOR DIAGONAL CUTTING |
410x410mm (H. max 65 mm) (H. 125 = 370×370 mm) |
| MAX CUTTING THICKNESS |
Blade Ø350=110 mm (Blade Ø300=80 mm) |
| MAX CUTTING DEPTH FOR 45° (JOLLY) CUT |
Blade Ø350=80 mm (Blade Ø300=60 mm) |
| DIAMOND BLADE DIAMETER |
Ø350 mm / Ø300 mm |
| TOOL HOLE |
25,4 mm |
| POWER ENGINE |
3Hp/2,2Kw, 9A |
| MACHINE'S DIMENSION IN STOCK |
115x66x63,5 cm |
| ROTATION SPEED |
2800rpm |
| WATER TANK CAPACITY |
40 liters |
| MAX CUTTING DEPTH WITH 2 RUNS |
125 mm |
| ENGINE TYPE |
SINGLE-PHASE 230V~50Hz |
| WATER PUMP |
S0 |
| MACHINE'S DIMENSION |
1220x785xH1285 |
| WEIGHT |
67 kg |
| AMPEROMETRIC PROTECTION |
13 A |
| FENCE |
Standard |
| SIDE BENCH DIMESION |
500x445mm |
| WHEELS |
Standard |
| THERMIC PROTECTION |
160°c |
-
-
