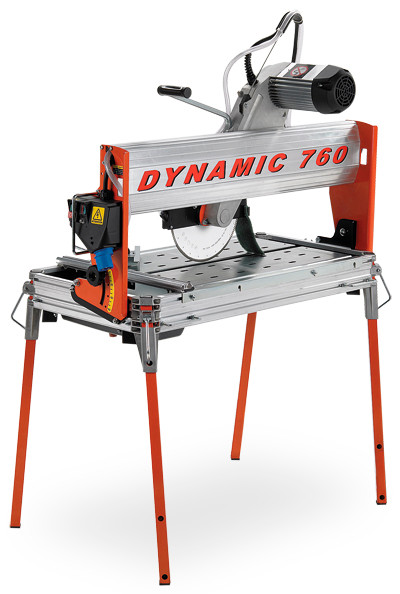

Battipav Dynamic 760 Marble Bridge Saw

Battipav Dynamic 760 Marble Bridge Saw

Availability:

7 - 14 Days

€2,199.00 (Inc. VAT)

€1,787.80 (Ex. VAT)

Overview

DYNAMIC is a bridge saw with antiskid “POLY V” belt drive ideal for the building sector. New design with vanguard technical innovation, strong and precise, it is suitable for cutting bricks, stones, concrete blocks, granite, marble and gres. It makes cuts moving forward manually or tilting the engine group. It is built to work with diamond disks Ø250 mm and Ø300 mm

Features

Single phase engine 230V 50Hz 3Hp/2,2Kw with thermal and amperometrical protection
Switch with release coil
Overheat protection with manual reset
Sliding cutting head and tilting engine
Cutting progress system with hand wheel
Laser instrument
Kit wheels
Adjustable legs
Adjustable goniometer fence
Water recycling pump type S3
Disk Ø 300/250mm not included

Specifications

MAX CUTTING LENGHT	760 mm
SIZE TILE FOR DIAGONAL CUTTING	535×535 mm (blade Ø300) – 460×460 mm (blade Ø250)
MAX CUTTING THICKNESS	110 mm (blade Ø300) – 80 mm (blade Ø250)
MAX CUTTING DEPTH FOR 45° (JOLLY) CUT	65 mm (blade Ø300) – 45 mm (blade Ø250)
DIAMOND BLADE DIAMETER	Ø300 mm – Ø250mm
TOOL HOLE	Ø25,4 mm
POWER ENGINE	3Hp/2,2Kw, 9A
MACHINE'S DIMENSION IN STOCK	72x130x94 cm
ROTATION SPEED	2800rpm
WATER TANK CAPACITY	Min. 13.5 / Max. 17.5 liters
MAX CUTTING DEPTH WITH 2 RUNS	200 mm (blade Ø300) – 150 mm (blade Ø250)
ENGINE TYPE	SINGLE-PHASE 230V~50Hz
LASER INSTRUMENT	Optional
WATER PUMP	S2
MACHINE'S DIMENSION	1200x675xH 1550mm
WEIGHT	64kg
AMPEROMETRIC PROTECTION	13 A
FENCE	Standard
EXTENSION SIDE BENCH	Optional
SIDE BENCH DIMESION	652×523 mm
WHEELS	Optional
THERMIC PROTECTION	160°C
CUTTING PROGRESS SYSTEM	Optional
SIDE BANCH WITH ROLLERS	Optional
SIDE TILE SUPPORT	Optional
LONG SLOT FOR SIDE TILE SUPPORT	Optional
TILE LOCK SYSTEM	Optional
