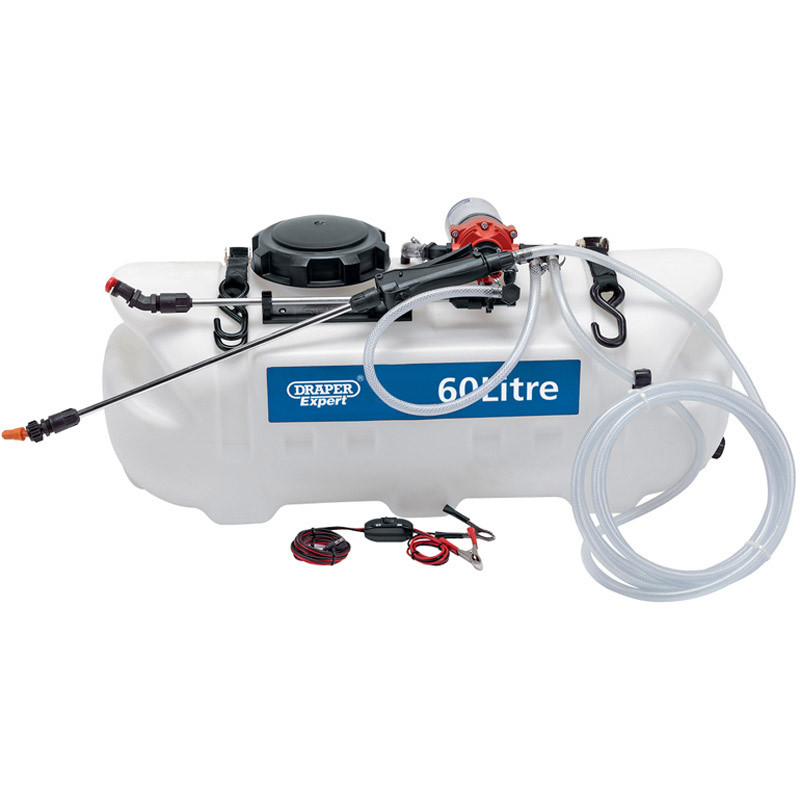

Draper Expert 60L 12v DC ATV Spot/ Broadcast Sprayer

Expert Quality, mounts to any all terrain vehicle (ATV). Supplied with two lances: one attached to tank bracket for broadcast spraying and the second with a trigger for hand operation. Spray pump powered by 12V battery or connected via electric 12V motor on ATV. The pressure activated diaphragm pump produces a smooth flow from the tank. The tank is manufactured from special chemical resistant polymers for extra long life. Can be used for spraying fertilizer, weed killer, de-icer and ethylene glycol products. Supplied with straps for fixing to ATV and switch for remote operation.

Specification

Maximum flow rate (b/cast lance)   ...   8.3L/min
Maximum pressure (b/cast lance)   ...   70psi (4.86bar)
Maximum flow rate (hand lance)   ...   3.8L/min
Maximum pressure (hand lance)   ...   40psi (2.76bar)
Spray pattern (both lances)   ...   Stream/Cone
Hose length (hand lance)   ...   4.5M
Tank dimensions:
- Length   ...   864mm
- Width   ...   368mm
- Height   ...   419mm
Weight   ...   8.4kg (empty)
